Remote Grease Lines and Fittings



Remote Grease Lines
Now you can grease those hard to reach, dangerous or contaminated grease points!

Simply install remote grease lines from your difficult to reach grease points to a grease anchor block. Be confident that the grease tubes will not burst under pressure.



We offer 4 types of Remote Grease Line Systems:

  • 6mm high pressure grease tube, with compression fittings
  • 6mm high pressure grease tube, with high pressure pushin fittings
  • 8.6mm extreme high pressure grease tube, with field adaptable fittings
  • 11.3mm super extreme high pressure grease tube, with field adaptable fittings

Purchase
Remote Grease Line
components
at our online
Remote Grease Line Store

6mm high pressure grease tube, with compression fittings.
For normal operating environments use our 6mm high pressure nylon tube. The 6mm high pressure tube can be used either with a variety of compression or push-in fittings. It is possible to comfortably run this 6mm high pressure grease tube up to 5 meters from the grease anchor block. Ideal for both indoor and outdoor use and is great for:

  • farm machinery such as harvesters, headers, diggers, tractors or trailers, hay balers, backhoes, milking machines
  • transport industry such as trailers
  • manufacturing plants and food processing pants and more

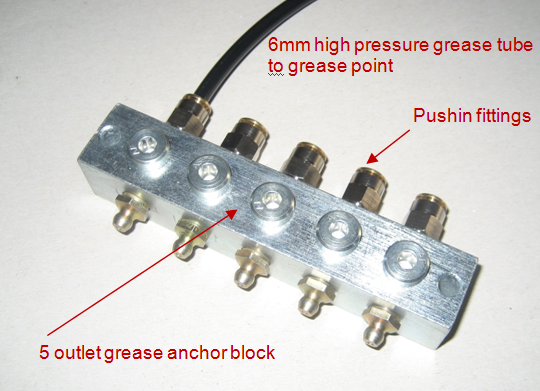

6mm high pressure grease tube, with high pressure pushin fittings
(same as above but pushin fittings).Using pushin fittings makes installation simpler and quicker than compression fittings.

8.6mm extreme high pressure grease tube, with field adaptable fittings
For extreme environments, where extended vibration, direct sunlight, extreme weather conditions exist use our 8.3mm high pressure, field adaptable grease hose. These are easily assembled with a hose end and screw sleeves. It is possible to run our 8.3mm high pressure grease hose up to 12 meters from the grease anchor block. Ideal for

  • Mobile mining machinery such as, excavators, drilling machines, screen bearings, impactors
  • Stationary mining equipment such as conveyors, crushers
  • Oil and gas such as drilling such as drill rigs, pumps and more
All fittings except for the olive are reusable.



11.3mm super extreme high pressure grease tube, with field adaptable fittings
(Same as above)Use where extremely long length of grease tubes or high volumes of grease are necessary.
Bearing end examples
Using 8.6mm or 11.3mm extreme high pressure grease hose with 90deg hose stud.
OR
Using 8.6mm or 11.3mm extreme high pressure grease hose with reducers/elbows and straight hose stud.
